Overview

TrueChrome PDAF is an autofocus HDMI microscope camera that combines quick image capture, processing, and measurement capabilities—all without the need for a computer. It adopts PDAF technology, widely used in professional photography fields such as DSLRs and smartphones, ensuring rapid and precise focusing. This minimizes manual adjustments and significantly enhances the efficiency of your microscopy tasks. Experience unparalleled convenience and performance with TrueChrome PDAF!

PDAF Autofocus Technology

The TrueChrome PDAF leverages PDAF autofocus technology to deliver a professional-grade photography experience. Originally perfected in DSLR cameras, this technology has become a standard feature in smartphones, renowned for its lightning-fast and precise focusing.

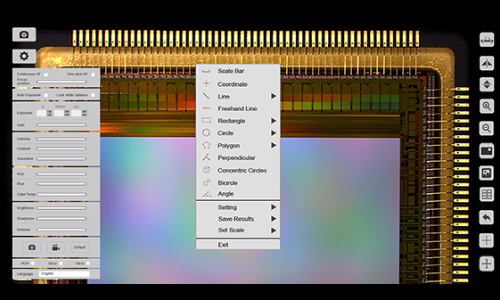

Quick capture and measurement functions

The TrueChrome PDAF provides fast image capture and processing. It has many built-in measurement tools, including freehand line, rectangle, polygon, circle, semi-circle, angle, and point-line distance. The TrueChrome PDAF also supports three measurement units: millimeter, centimeter, and micrometer, to meet the diverse measurement needs of users.

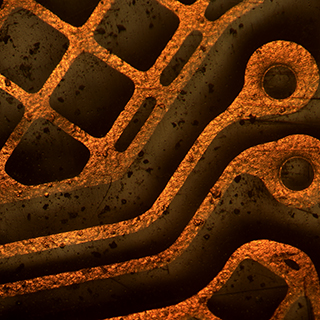

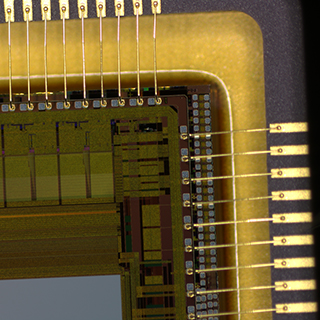

Perfect Color Reproduction

Tucsen's TrueChrome camera can process colour with a completely new level of precision, resulting in extremely-high color definition, perfectly matching the monitor image to the eyepiece view.

Specification >

Model: TrueChrome PDAF
Sensor Type: CMOS
Sensor Model: SONY IMX586
Color/Mono: Color
Array Diagonal: 5.28mm (1/3")
Resolution: 4MP, 2880（H）x 1620（V）
Pixel Size: 1.6 μm x 1.6 μm
Effective Area: 4.6 mm x 2.6 mm
Shutter Mode: Rolling
Frame Rate: 60 fps @ HDMI; 50 fps @ USB 2.0
Exposure Time: 0 ms - 5 s
SD Format: FAT32
Color Temperature: 1800 - 10000 K
Software: HDMI: Cloud, USB: Mosaic V2 / Mosaic V3
HDMI Key Settings: Preview: 1920 x 1080; Capture: 3264 x 1840; Vedio recording: 25 fps@1920 x 1080
Picture Format: HDMI JPG , TIF/USB TIFF , JPG , PNG , DICOM
Multiple Cameras: Supports 4 Cameras Simultaneously in SDK
Optical Interface: Standard C Mount
Power: 2.4 W
Weight: 452 g
Dimensions: 90.7 mm x 78 mm x 70.8 mm
Data Interface: HDMI, USB2.0, SD card
Operating Environment: Operating Environment
Operating System: Windows 7, 10 (32 Bit / 68 Bit) , Mac
PC Configuration: CPU Intel Core i5 or better (Quad or more Core), RAM 8G or more
