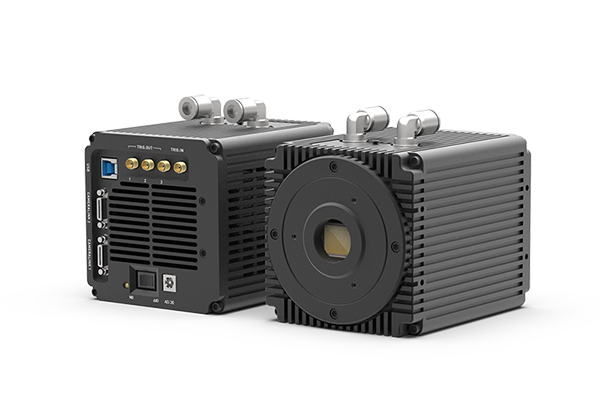

Dhyana 95V2
sCMOS Camera for UV-Visible-NIR imaging
- QE: 95%@560nm
- Pixel Size: 11μm x 11μm
- Resolution: 2048(H) x 2048(V)
- Frame Rate: 48fps@12bit STD
- Data Interface: CameraLink & USB3.0
Overview
Dhyana 95 was known as the world first 95%QE BSI sCMOS Camera, with its high sensitivity and typical performances like wide spectral response capability of 200-1100nm, large pixel size and high dynamic range. Now Dhyana 95V2 is launched with its smaller size but mightier performance, which can better meet the requirements of instrumentations OEM in various applications of life science, physic and astronomy etc.
-
95% QE High sensitivity
Rise above dim signals and noisy images. With the highest sensitivity, you can capture the weakest signals when you need to. Large 11μm pixels capture almost 3x the light of standard 6.5μm pixels, which combines with near-perfect quantum efficiency to maximize photon detection. Then, low noise electronics deliver high signal to noise ratio even when signals are low.
-
Background Quality
Exclusive Tucsen Calibration Technology reduces patterns visible in the bias or when imaging very low signal levels. This fine calibration is evidenced by our published DSNU (Dark Signal Non-Uniformity) and PRNU (Photon Response Non Uniformity) values. See it for yourself in our clean bias background images.
-
Field of View
Massive 32mm sensor diagonal offers fantastic imaging efficiency - capture more than ever before in a single snapshot. High pixel count and large sensor size improves your data throughput, recognition precision and provides additional context for your imaging subjects. For microscope-objective-based imaging, capture everything your optical system can deliver and see your entire sample in one shot.
Specification >
- Model: Dhyana 95V2
- Sensor Type: BSI sCMOS
- Sensor Model: Gpixel GSENSE400BSI
- Color/Mono: Mono
- Array Diagonal : 31.9mm
- Resolution: 4MP, 2048(H) x 2048(V)
- Pixel Size: 11μm x 11μm
- Effective Area: 22.5mm x 22.5mm
- Peak QE: 95%@560nm
- Frame Rate: 24fps@16bit HDR, 48fps@12bit STD
- Full-Well Capacity: Typical: 80ke-@HDR; 100ke-@STD
- Dynamic Range: 90dB
- Shutter Type: Rolling
- Readout Noise: 1.6e-(Median)/1.7e-(RMS)
- Exposure Time: 21μs~10s
- DSNU: 0.2e-
- PRNU: 0.3%
- Cooling Method: Air & Liquid
- Cooling temperature: 45℃ below ambient
- Dark Current: Air：0.5e-/pixel/s，Liquid：0. 25e-/pixel/s
- Optiona Interface: C-mount & F-mount
- Data Interface: USB3.0 & CameraLink
- Data Bit Depth: 16bit
- Binning: 2x2, 4x4
- ROI: 2048x1024, 2048x512, 1608x1608, 1200x1200, 1024x1024, 512x512, 256x256
- Timestamp Accuracy: 1μs
- Trigger Mode: Hardware & Software
- Output Trigger Signals: Exposure, Global, Readout, High level, Low level
- Trigger Interface: SMA
- Power Supply: 12V/8A
- Power Consumption: 60W
- Dimensions : C-mount: 100mm x 118mm x 127mm；F-mount: 100mm x 118mm x 157mm
- Weight: 1613g
- Software: Mosaic / LabVIEW / Matlab / Micromanager / MetaMorph
- SDK: C / C++
- Operating System: Windows/Linux
- Operating Environment: Temperature 0~40°C / Humidity 10~85%
Applications >
Download >
-
Dhyana 95V2 Brochure
-
Dhyana 95V2 Dimension
-
Software-Mosaic V1.6.8
-
Plugin-Labview ( with user guide )
-
Plugin-Matlab ( with user guide )
-
Plugin-Micromanager ( with user guide )
-
Driver-TUCam Camera Driver V1.4.0.7
