Overview

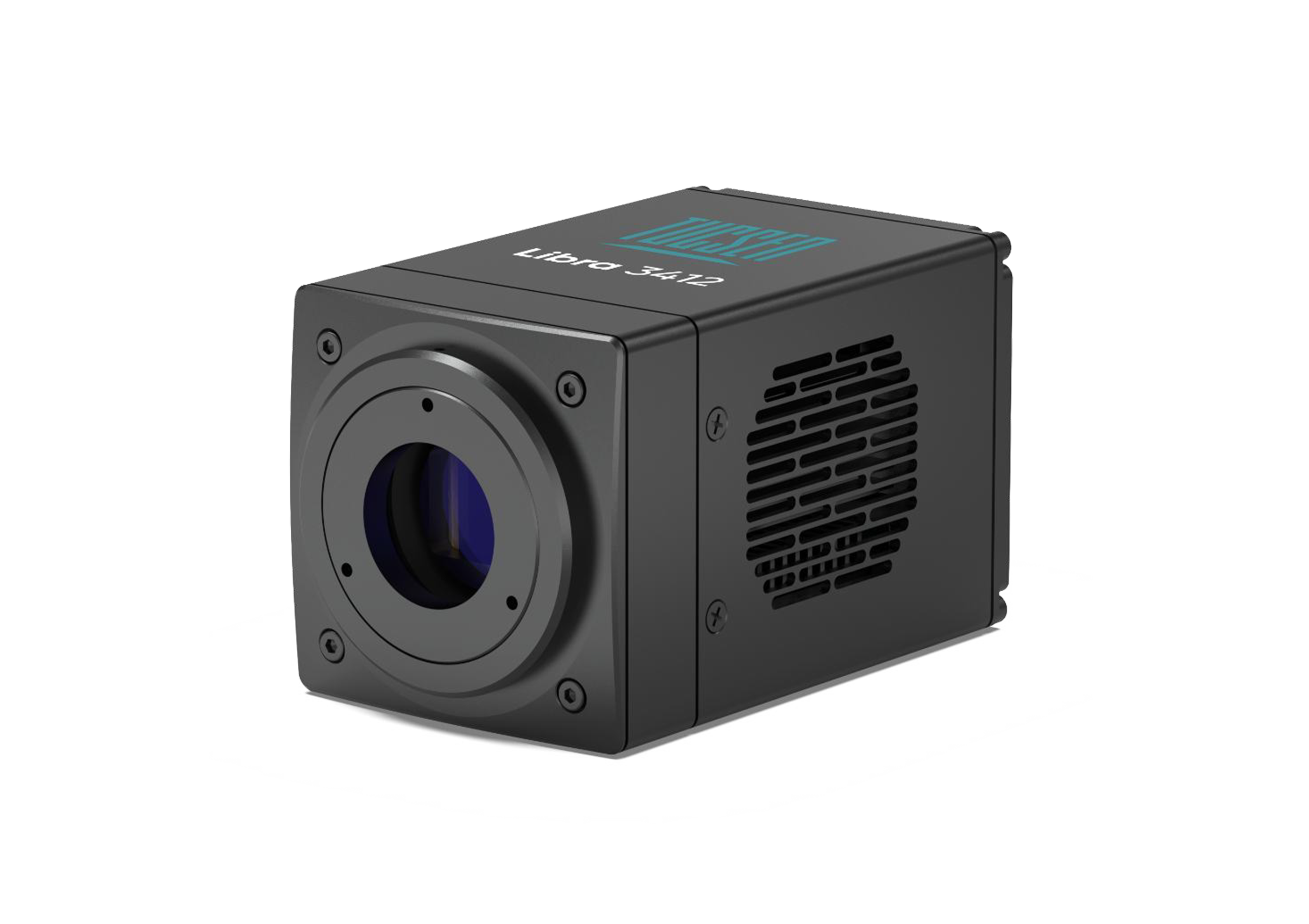

The Libra 3412M is a global shutter mono camera developed byTucsen for instrument integration. It utilizes a FSI sCMOS technology, offering a broad spectral response (350nm~1100nm) and high sensitivity in the near-infrared range. It features a compact design, providing high-speed and high dynamic performance, along with advanced cooling , making it even more beneficial for system integration and enhancing overall performance.

Wide Spectral Response

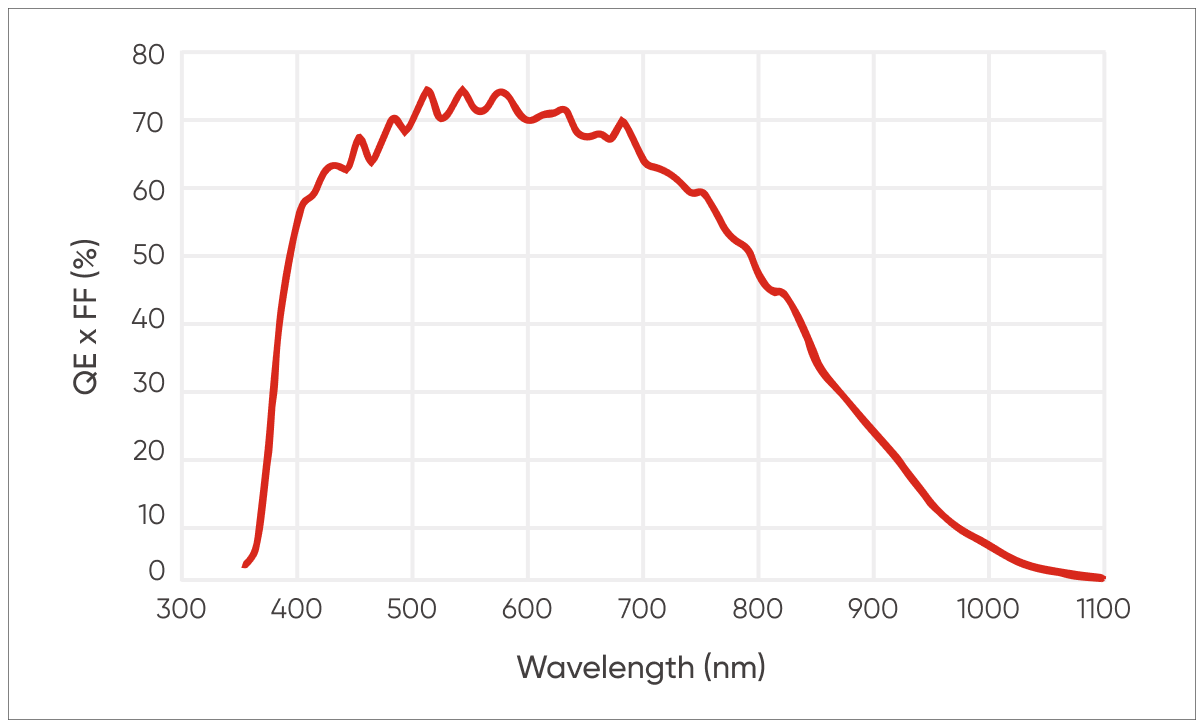

Using front-illuminated sCMOS technology, the Libra 3412M offers a wide spectral response (350nm~1100nm) and high near-infrared sensitivity, making it suitable for most fluorescence imaging needs, especially multi-channel scanning applications.
Global Shutter & High-Speed

The Libra 3412M utilizes global shutter technology, enabling clear and rapid capture of moving samples. It is also equipped with a faster GigE interface, several times the speed compared to USB3.0.The full resolution speed can reach up to 60 fps @ 12-bit and 128 fps @ 8-bit, significantly boosting the throughput efficiency of instruments.
Cooling for Low Light

The camera cooling technology not only significantly reduces the thermal noise of the chip, providing uniform background for fluorescence imaging, but also offers stable measurement data for the instrument system, improving the measurement accuracy.

Specification >

Model: Libra 3412M
Sensor Type: FSI sCMOS
Sensor Model: Gpixel GMAX 3412
Color/Mono: Mono
Array Diagonal: 17.4 mm （1.1"）
Effective area: 14.0mm x 10.5mm
Effective Resolution: 4096 (H) x 3072 (V)
Pixel Size: 3.4 μm x 3.4 μm
Bit Depth: 8 bit, 12 bit
Frame Rate: 128 fps @ 8 bit, 60 fps @ 12 bit
Readout noise : 12 bit: 3.6 e-@Gain 1，1.9 e- @ Gain 2
Dark Current : 3 e-/pixel/s @ 25℃
Gain Mode: Standard (12 bit)，Speed (8 bit)
Full well capacity: 12 bit: 9 ke- @ Gain 1, 0.6 ke- @ Gain 2
Shutter Mode: Global Shutter
Exposure Time: 12.2 μs ~ 10s
AI White Blance: Support
Image correction: DPC
ROI: Support
Binning (FPGA): 1 x 1 , 2 x 2 , 4 x 4
Cooling Method: TEC
Cooling Temperature: Passive cooling:Chip is stable at 25℃ @ 25℃(ambient);

Air cooling: 10℃ @ 25℃(ambient)
Trigger Mode: Hardware, Software
Output Trigger Signals: Exposure start, Exposure, Readout end, Contrast
Trigger Interface: SMA
SDK: C, C++, C#，Python
Data Interface: 10G GigE
Optical Interface: C-Mount，Customizable
Power: 12 V / 6A
Power Consumption: T.B.D
Dimensions: 60 mm x 60 mm x 100 mm
Camera Weight: T.B.D
Camera Software: SamplePro, Mosiac V3, LabVIEW, MATLAB, Micro-Manager 2.0
Operating System: Windows / Linux
Operating Environment: Working: Temperature 0~40 °C, Humidity 10~85 %;

Storage: Temperature -10~60 °C, Humidity 0~85 %
