Overview

The Libra 3405C is a global shutter AI color camera developed byTucsen for instrument integration. It utilizes a color sCMOS technology, offering a broad spectral response (350nm~1100nm) and high sensitivity in the near-infrared range. It features a compact design, providing high-speed and high dynamic performance, along with advanced AI color correction, making it even more beneficial for system integration and enhancing overall performance.

Wide Spectral Response

Using color sCMOS technology, The Libra 3405C offers a wide spectral response (350nm~1100nm) and high near-infrared sensitivity. It not only performs bright-field color imaging but is also suitable for most fluorescence imaging needs.
Global Shutter & High-Speed

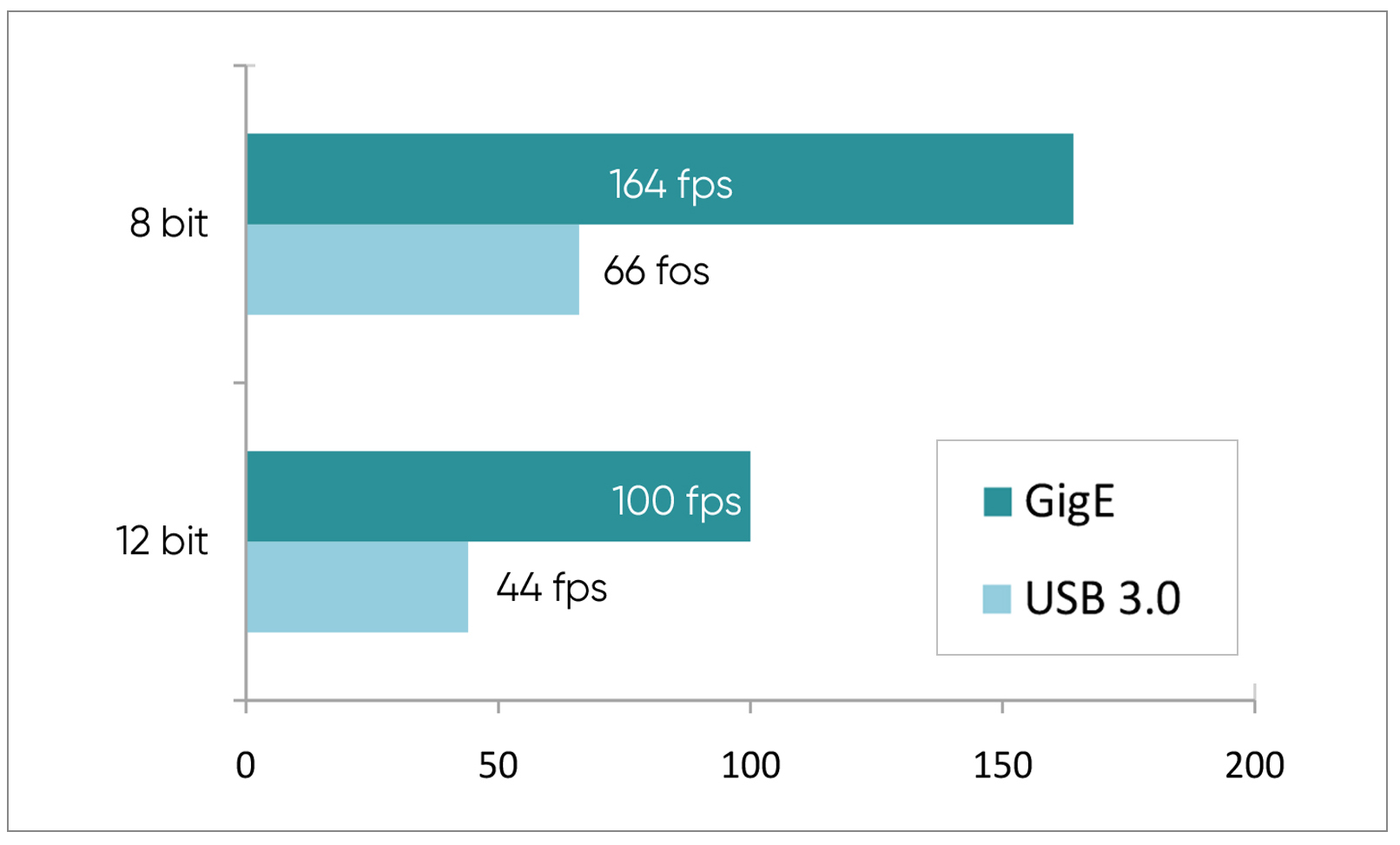

The Libra 3405C utilizes global shutter technology, enabling clear and rapid capture of moving samples. It is also equipped with a faster GiGE interface, doubling the speed compared to USB3.0.The full resolution speed can reach up to 100 fps @12 bit and 164fps @ 8-bit, significantly boosting the throughput efficiency of the instrument systems.
AI Color Correction

Tusen AI color correction algorithm automatically detects lighting and color temperature, eliminating manual white balance adjustments for accurate color reproduction. This feature works directly based on the camera itself, requiring no upgrades to the host, making it highly user-friendly.

Specification >

Model: Libra 3405C
Sensor Type: Color sCMOS
Sensor Model: Gpixel GMAX 3405
Peak QE: 75% @540 nm; 33% @850 nm
Color/Mono: Color
Array Diagonal: 10.9 mm （2/3”）
Effective area: 8.3 mm x 7.0 mm
Effective Resolution: 2448 (H) x 2048 (V)
Pixel Size: 3.4 μm x 3.4 μm
Bit Depth: 8 bit , 12 bit
Frame Rate: 164 fps @ 8 bit; 100 fps @ 12 bit
Readout noise : 12 bit: 3.9 e- @ Gain 1，1.6 e- @ Gain 2
Dark Current: 3 e-/pixel/s @ 25℃
Gain Mode: Standard (12 bit)，Speed (8 bit)
Full well capacity: 12 bit: 8.7 ke-@Gain 1, 0.5 ke-@Gain 2
Shutter Mode: Global Shutter
Exposure Time: 12.2 μs ~ 10 s
AI White Blance: Support
Image correction: DPC
ROI: Support
Binning (FPGA): 1 x 1 , 2 x 2 , 4 x 4
Cooling Method: TEC
Cooling Temperature: Passive cooling:Chip is stable at 25℃ @ 25℃(ambient);

Air cooling: 10℃ @ 25℃(ambient)
Trigger Mode: Hardware, Software
Output Trigger Signals: Exposure start, Exposure, Readout end, Contrast
Trigger Interface: SMA
SDK: C, C++, C#, Python
Data Interface: 10G GigE
Optical Interface: C-Mount，Customizable
Power: 12 V/6 A
Power Consumption: T.B.D
Dimensions: 60 mm x 60 mm x100 mm
Camera Weight: TBD
Camera Software: SamplePro, Mosiac V3, LabVIEW, MATLAB, Micro-Manager 2.0
Operating System: Windows / Linux
Operating Environment: Working: Temperature 0~40 °C, Humidity 10~85 %;

Storage: Temperature -10~60 °C, Humidity 0~85 %
