Overview

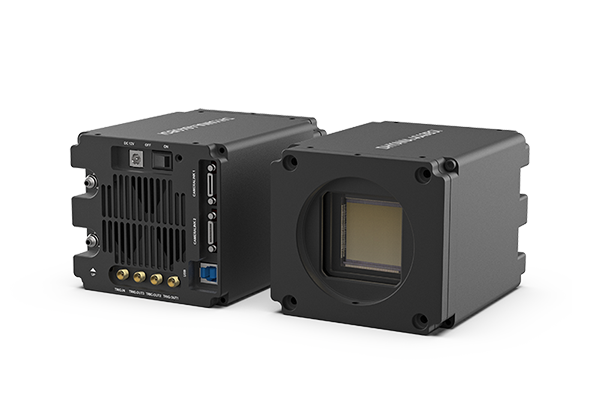

Tucsen Dhyana 4040 is a large sCMOS camera which used Gpixel sensor named GSENSE4040. It can be used in scientific research such as astronomy observation, spot analysis, quantum imaging and so on, which can realize high-speed and high dynamic imaging and quantitative analysis in a large field of view.

Large Format sCMOS

Extremely large sensor formats offer fantastic imaging efficiency - capture more than ever before in a single snapshot. High pixel counts and large sensor sizes improve your data throughput, recognition precision and provide additional context for your imaging subjects. In lens-based systems, wide viewing angles combined with fine image resolution become possible.
Background Quality

Exclusive Tucsen Calibration Technology reduces patterns visible in the bias or when imaging very low signal levels. This fine calibration is evidenced by our published DSNU (Dark Signal Non-Uniformity) and PRNU (Photon Response Non Uniformity) values. See it for yourself in our clean bias background images.
Large Full Well

If you need to capture bright and dim signals in the same image, high dynamic range is key - without it, either high signals are saturated, or dim signals are lost in the noise. With large full well capacity, the maximum signal that can be detected without saturation is increased, extending dynamic range. High dynamic range cameras are also capable of measuring finer intensity changes for applications requiring high accuracy and reliability of measurement.

Specification >

Model: Dhyana 4040
Sensor Type: FSI sCMOS
Sensor Model: Gpixel GSENSE4040
Color/Mono: Mono
Array Diagonal : 52.1mm
Resolution: 16MP, 4096(H) x 4096(V)
Pixel Size: 9μm x 9μm
Effective Area: 36.9mm x 36.9mm
Peak QE: 74%@600nm
Frame Rate: 16.5fps@CameraLink; 9.7fps@USB3.0
Full-Well Capacity: Typical: 70ke-
Dynamic Range: 86dB
Readout Noise: 3.6e-
Shutter Type: Rolling
Exposure Time: 10μs~3600s
DSNU: 0.5e-
PRNU: 0.2%
Cooling Method: Air & Liquid
Max. Cooling: Air: -35℃, Liquid: -45℃
Cooling Temperature: Air: (Ambient at +20 ): -15℃ Liquid: -25°C@20°C
Dark Current: Air: 0.15e-/pixel/s; Liquid: 0.1e-/pixel/s
Data Interface: USB3.0 & CameraLink
Binning: 2x2, 4x4
ROI: Support
TimeStamp Accuracy: 1μs accuracy
GPS TimeStamp : 8ns accuracy
Trigger Mode: Hardware & Software
Output Trigger Signals: Exposure, Global, Readout, High level, Low level
Trigger Interface: SMA & CC1
Data Bit Depth: 12bit & 16bit
Optical Interface: Optional F-Mount/User-customization
Power Supply: 12V/8A
Power Consumption: ＜45W
Dimensions : 105mm x 95mm x 123.5mm
Weight: 2kg
Software: Mosaic1.6/Samplepro/MaximDL/Labview/Matlab
SDK: C/C++/C#
Operating System: Windows/Linux
Operating Environment: Working: Temperature -25 ~ 45℃/Humidity 0~95%
Storage: Temperature-35 ~ 60℃/Humidity 0~95%
