FL 9BW

Highlight
Specification
Application
Download
Contact us

Overview

The FL 9BW is a cooled CMOS camera designed for long exposure imaging. It not only incorporates high sensitivity and low noise advantages from latest sensor technologies, but also leverages Tucsen’s many years experiences on cooling chamber design and advanced image processing, being able to capture clean and even images for up to 60 minutes exposure time.

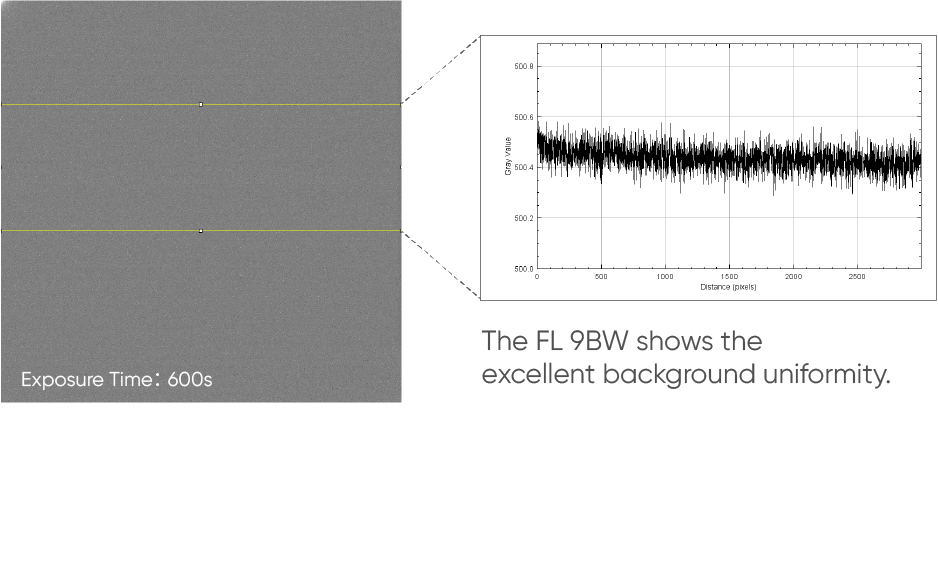

Long Exposure Imaging

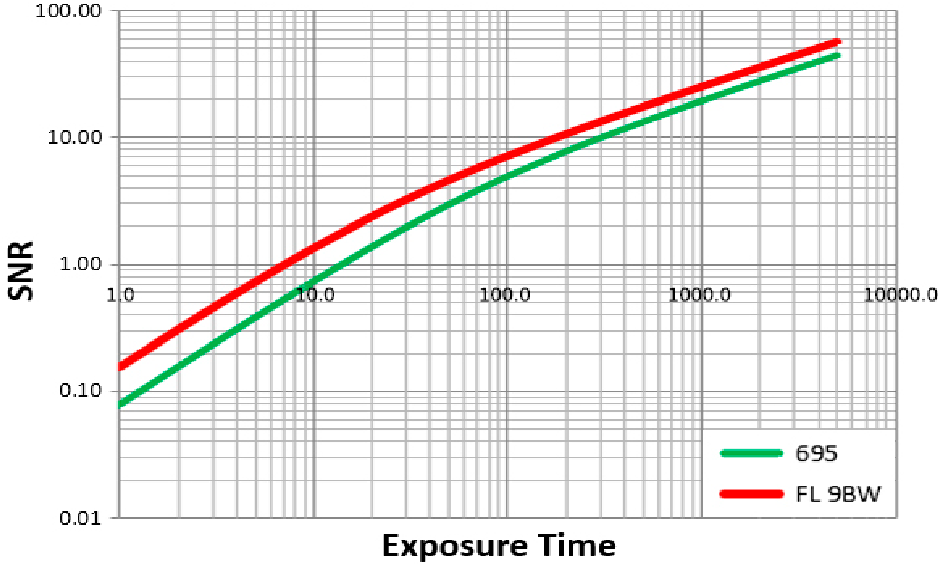

The Dark current and the cooling depth are the key performance of long exposure imaging. The FL 9BW has the low dark current down to 0.0005 e- / p / s and the deep cooling depth down to -25℃ at ambient 22°C , which make it can acquire high SNR images within ~ 10 min, and has higher SNR in 60 min than the CCD.
Better Quantitative Capability

The FL 9BW integrates Sony's glow suppression technology and TUCSEN advanced image calibration technology to calibrate problems such as background glow and dead pixels, providing much cleaner background for quantitative analysis.
Latest BSI-CMOS Technology

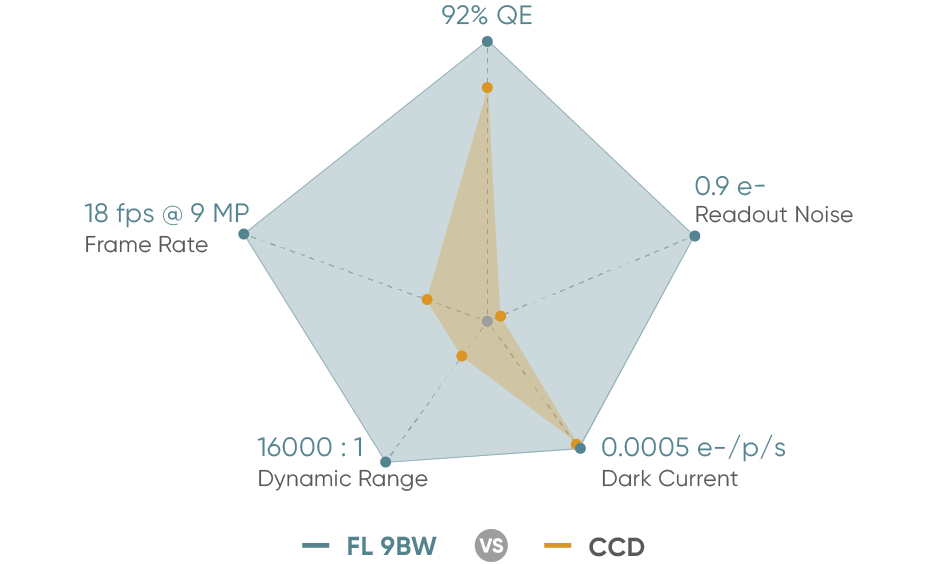

The FL 9BW has the excellent imaging performance of modern CMOS technology. Not only the dark current is as low as the CCD, but also has the ultra-low light imaging capacity with 92 % peak QE and 0.9 e- readout noise, and the frame rate and the dynamic range are higher than 4 times that of the CCD.

Specification >

Model: FL 9BW
Sensor Type: BSI CMOS
Sensor Model: SONY IMX533CLK-D
Color/Mono: Mono
Array Diagonal: 15.96 mm (1”)
Effective area: 11.28 mm × 11.28 mm
Pixel Size: 3.76 µm × 3.76 µm
Resolution: 3000 × 3000, 9 MP
Peak QE: 92 % @ 540 nm
Dark Current: < 0.0005 e-/p/s
Gain Mode: Gain 0 - HFWC, Gain 1 - Balance, Gain 2 - High Sensitivity 1, Gain 3 - High Sensitivity 2
Full well capacity: Gain 0：47 ke- @ bin1, binning > 180 ke- ;
Gain 1：16 ke- @ bin1, binning > 64 ke- ;
Gain 2：8 ke- @ bin1, 14 bit binning > 32 ke-;
Gain 3：3ke- @ bin1, 14 bit binning > 12ke-
Readout noise (Standard): 3.2 e- @ Gain 0, 1.2 e- @ Gain 1, 1.0 e- @ Gain 2, 0.95 e- @ Gain 3
Readout noise (LowNoise): 2.5 e- @ Gain 0, 1.0 e- @ Gain 1, 0.9 e- @ Gain 2, 0.85 e- @ Gain 3
Frame Rate: 19 fps @ Standard Mode, 12 fps @ Low Noise Mode
Shutter Mode: Rolling
Exposure Time: 15 μs ~ 60 min
Image Processing: DDFC, DPC
ROI: Support
Binning: 2，3，4，6，8，12，16，24
Cooling Method: Air
Cooling Temperature: Cooled to -25 °C @ Ambient temperature (22 °C)
Trigger Mode: Hardware, Software
Output Trigger Signals: Exposure start, Global, Readout end, High level, Low level
Trigger Interface: Hirose
SDK: C, C++, C#
Data Interface: USB 3.0
Software: Mosaic, SamplePro, LabVIEW, MATLAB, Micromanager
Optical Interface: C-Mount, Customizable
Bit Depth: 14 bit, 16 bit
Power: 12 V / 6 A
Power Consumption: ≤ 40 W
Dimensions: 76 mm x 76 mm x 98.5 mm
Camera Weight: 835 g
Operating System: Windows / Linux
Operating Environment: Working: Temperature 0 ~ 40 °C , Humidity 10 ~ 85 %
Storage: Temperature -10 ~ 60 °C , Humidity 0 ~ 85 %
