Overview

The FL 20BW is a Scientific CMOS camera designed for documentation or system integration. Delivering 20 million pixels with 84% QE it is the perfect camera for systems operating with low NA/low magnification objectives.

20MP for Capturing High-Resolution Images

The FL 20BW's nearly 16mm diagonal diameter image sensor can cover the most uniform central area of the image plane. With a resolution of up to 20 megapixels, you can capture high-definition details of your samples in one shot.

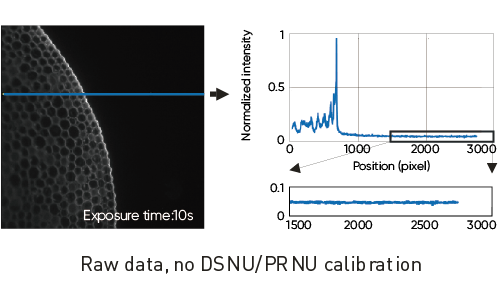

Advanced Cooling Technology Reduces Dark Current Down to 0.001e-/pixel/s

Based on Tucsen's professional cooling technology for sCMOS cameras, the FL 20BW can achieve a dark current level as low as 0.001e/pixel/s, significantly reducing hot pixels during long exposure times.

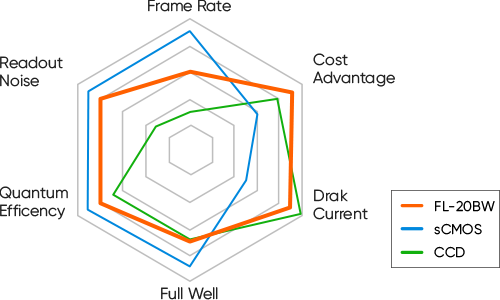

Excellent Comprehensive Performance

The FL 20BW has excellent overall performance, achieving the same low levels of dark current and cost as a CCD camera while maintaining the low readout noise and faster speeds of a CMOS camera.

Specification >

Model: FL 20BW
Sensor Type: BSI CMOS
Sensor Model: SONY IMX183CLK-J
Color/Mono: Mono
Array Diagonal: 15.86 mm (1”)
Effective Area: 13.1 mm x 8.8 mm
Pixel Size: 2.4 μm x 2.4 μm
Resolution: 5472 ( H ) x 3648 ( V ), 20 MP
Peak QE: 84 % @ 495 nm
Dark Current: 0.001 e-/p/s
Full-Well Capacity: 16 ke-
Readout Noise: 0.6 e-
DSNU: 0.2 e-
PRNU: 0.8 %
Frame Rate: 16 fps @ 5472 x 3648 ( 8 bit ), 8 fps @ 5472 x 3648 ( 16 bit )
53 fps @ 2736 x 1824 ( 8 bit ), 27 fps @ 2736 x 1824 ( 16 bit )
67 fps @ 1824 x 1216 ( 8 bit ), 67 fps @ 1824 x 1216 ( 16 bit )
Shutter Mode: Rolling
Exposure Time: 3 μs ~ 1 hour
Binning: 2 x 2, 3 x 3, 4 x 4, 8 x 8
PC Software: Mosaic
Picture Format: TIFF, JPG, PNG, DICOM
Multiple Cameras: Supports 4 Cameras Simultaneously in SDK
SDK: C/C++, C#, Directshow/Twain
Data Interface: USB 3.0
Optical Interface: C-Mount
Bit Depth: 16 / 8 bit
Power: 12 V
Dimensions: 85 mm x 85 mm x 112 mm
Camera Weight: 980 g
Operating System: Windows, Linux
PC Configuration: CPU: Intel Core i5 or better(Quad or more Core), RAM: 8G or more
Operating Environment: Working: Temperature 0~40 °C , Humidity 10~85 %
Storage: Temperature -10~60 °C , Humidity 0~85 %
