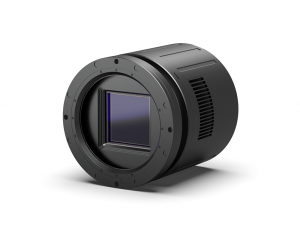

Dhyana 4040

Large FSI sCMOS camera with cameraLink high-speed interface.

  • 74% QE @ 600nm
  • 9 μm x 9 μm
  • 4096 (H) x 4096 (V)
  • 16.5 fps @ CL, 9.7 fps @ USB3.0
  • CameraLink & USB3.0
Pricing and Options
  • products_banner
  • products_banner
  • products_banner
  • products_banner

Overview

The Dhyana 4040 delivers big sensor performance. With a 52mm diameter sensor made of 9 micron pixels, it operates with low noise at high speed. Providing CCD level performance in terms of background and noise performance, at speeds that enable a wide range of applications.

  • Large Format sCMOS

    Extremely large sensor formats offer fantastic imaging efficiency - capture more than ever before in a single snapshot. High pixel counts and large sensor sizes improve your data throughput, recognition precision and provide additional context for your imaging subjects. In lens-based systems, wide viewing angles combined with fine image resolution become possible.

    Large Format sCMOS

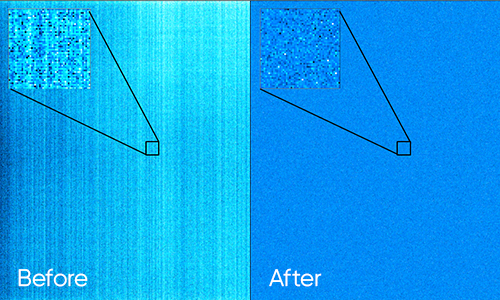

  • Background Quality

    Exclusive Tucsen Calibration Technology reduces patterns visible in the bias or when imaging very low signal levels. This fine calibration is evidenced by our published DSNU (Dark Signal Non-Uniformity) and PRNU (Photon Response Non Uniformity) values. See it for yourself in our clean bias background images.

    Background Quality

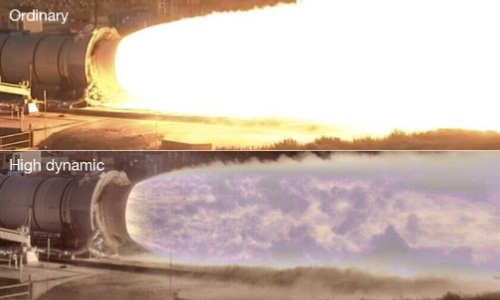

  • Large Full Well

    If you need to capture bright and dim signals in the same image, high dynamic range is key - without it, either high signals are saturated, or dim signals are lost in the noise. With large full well capacity, the maximum signal that can be detected without saturation is increased, extending dynamic range. High dynamic range cameras are also capable of measuring finer intensity changes for applications requiring high accuracy and reliability of measurement.

    Large Full Well

Specification >

  • Model: Dhyana 4040
  • Sensor Type: FSI sCMOS
  • Sensor Model: Gpixel GSENSE4040
  • Peak QE: 74 % @ 600 nm
  • Color/Mono: Mono
  • Array Diagonal : 52.1 mm
  • Effective Area: 36.9 mm x 36.9 mm
  • Resolution: 4096 (H) x 4096 (V)
  • Pixel Size: 9 μm x 9 μm
  • Full-Well Capacity: Typ. : 70 ke-
  • Dynamic Range: Typ. : 86 dB
  • Frame Rate: 16.5 fps @ CameraLink, 9.7 fps @ USB 3.0
  • Readout Noise: Typ. : 3.6 e-
  • Shutter Type: Rolling
  • Exposure Time: 10 μs ~ 3600 s
  • DSNU: 0.5 e-
  • PRNU: 0.2 %
  • Cooling Method: Air, Liquid
  • Max. Cooling: 45 ℃ below ambient
  • Dark Current: Air: 0.15 e-/pixel/s, Liquid: 0.1 e-/pixel/s
  • Binning: 2 x 2, 4 x 4
  • ROI: Support
  • TimeStamp Accuracy: 1 μs accuracy
  • GPS TimeStamp : 8 ns accuracy
  • Trigger Mode: Hardware, Software
  • Output Trigger Signals: Exposure start, Global, Readout end, High level, Low level
  • Trigger Interface: SMA , CC1
  • Data Interface: USB 3.0, CameraLink
  • Data Bit Depth: 12 bit, 16 bit
  • Optical Interface: Optional F-Mount / User-customization
  • Power Supply: 12 V / 8 A
  • Power Consumption: < 45 W
  • Dimensions : 105 mm x 95 mm x 123.5 mm
  • Weight: 2 kg
  • Software: Mosaic1.6, Samplepro, MaximDL, Labview, Matlab
  • SDK: C, C++, C#
  • Operating System: Windows, Linux
  • Operating Environment: Working: Temperature -25 ~ 45 ℃ , Humidity 0 ~ 95 %
    Storage: Temperature -35 ~ 60 ℃ , Humidity 0 ~ 95 %
+ View all
