Dhyana 401A-G
Compact 11 μm sCMOS designed with instrument integration in mind.
- 32mm Diameter
- 11μm x 11μm
- 2048 (H) x 2048 (V)
- 90,000e- Full Well
- GenICam Standard
Overview
The Dhyana 401A-G is the sCMOS answer for system integrators who seek sCMOS performance but want to preserve their instrument cogs/cost. Built in a small package using a front illuminated 11 micron pixel sensor, the camera delivers what most systems need. It also remains the most cost-effective choice when compared to its contemporaries.
-
Large Pixel & Large Full Well

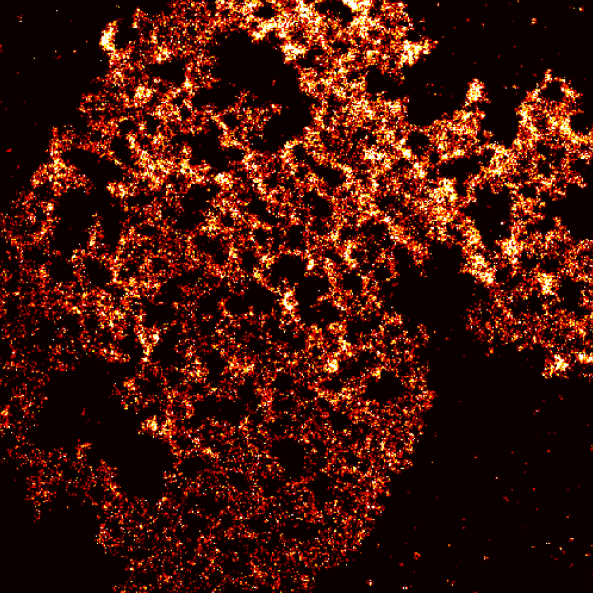

For those seeking sensitivity, which used to be achieved through binning in CCD, the Dhyana 401A-G delivers a 11 micron pixel similar to binning a classical CCD by 2 or 3X. Along with the sensitivity this brings, it delivers a 90,000 electron full well allowing observation of weak and strong signals within the same image.
-

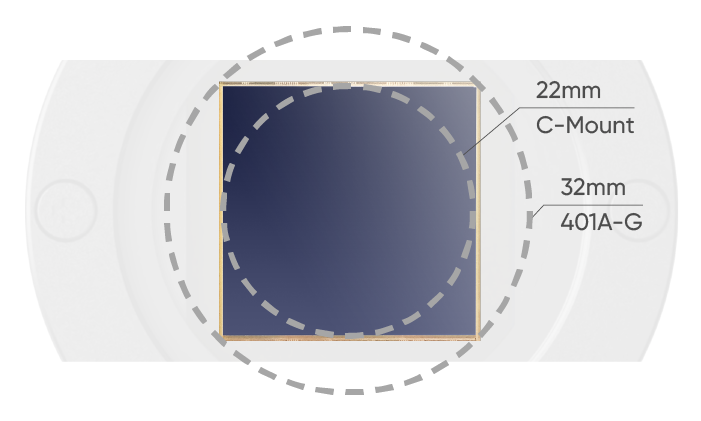

Field of View
Massive 32mm sensor diagonal offers fantastic imaging efficiency - capture more than ever before in a single snapshot. High pixel count and large sensor size improves your data throughput, recognition precision and provides additional context for your imaging subjects. For microscope-objective-based imaging, capture everything your optical system can deliver and see your entire sample in one shot.
-
Compact Design
Our cameras are cleverly designed inside and out to make integration easier. From the casing to the software, we've optimised our design to allow yours to be as space-efficient and cost-effective as possible.
Specification >
- Model: Dhyana 401A-G
- Sensor Type: FSI sCMOS
- Sensor Model: Gpixel GSENSE400
- Peak QE: 58 % @ 600 nm
- Color/Mono: Mono
- Array Diagonal: 32 mm
- Effective Area: 22.5 mm x 22.5 mm
- Resolution: 2048 (H) x 2048 (V)
- Pixel Size: 11 μm x 11 μm
- Full-Well Capacity: Typ. : 91 ke-
- Dynamic Range: Typ. : 95 dB
- Frame Rate: 20 fps
- Readout Noise: Typ. : 1.5 e- (Median)
- Shutter Type: Rolling
- Exposure Time: 21 μs ~ 1 s
- Binning: 2 x 2
- ROI: Support
- Trigger Mode: Hardware, Software
- Output Trigger Signals: Exposure start, Readout end
- Trigger Interface: Hirose
- Data Interface: GigE
- Data Bit Depth: 12 bit, 16 bit
- Optical Interface: M42
- Power Supply: 12 V / 2 A
- Power Consumption: 6 W

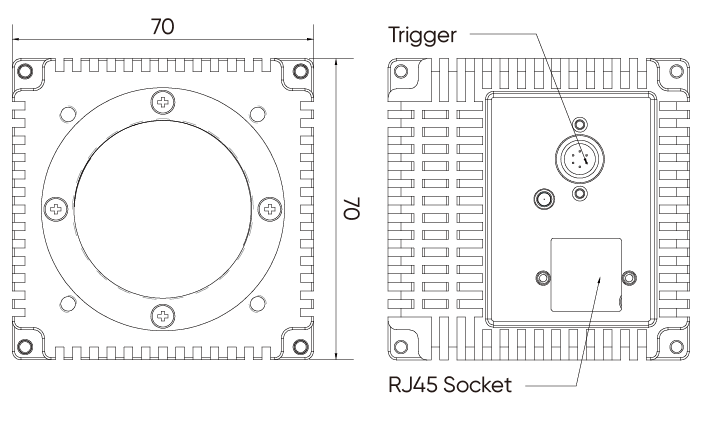

- Dimensions: 70 mm x 70 mm x 68 mm
- Weight: 540 g
- Software: SamplePro
- SDK: C, C++, C#
- Operating System: Windows, Linux
- Operating Environment: Temperature 0 ~ 40 °C, Humidity 10 ~ 85 %
Applications >
Download >
-
Dhyana 401A-G Brochure
-
Dhyana 401A-G Dimensions
-
Plugin-Labview ( with user guide )
-
Plugin-Matlab ( with user guide )
-
Plugin-Micromanager ( with user guide )
