Overview

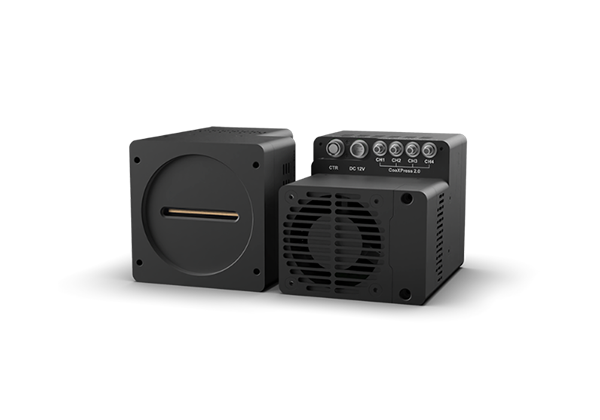

The Dhyana 9KTDI has a high-speed line rate of 9K@510kHz as it adopts the BSI sCMOS technology, which means the data throughput is up to 4590 megapixels per second, almost 6x that of 8K CMOS -Line scan cameras and more than 50x that of TDI CCD cameras.

82% High QE/Wide spectrum

The Dhyana 9KTDI adopts back-illuminated sCMOS technology and has a wide spectral response capability of 200nm-1100nm. Combined with 256-level TDI and cooling technology, it can be better used in low-light imaging fields such as ultraviolet, visible light and near-infrared.
256 TDI Stage Provides High SNR

The Dhyana 9KTDI supports 16~256 levels of TDI (Time Delay Integration) imaging. This can increase the signal integration per unit of time to obtain images with a higher signal-to-noise ratio under limited lighting conditions.
High Throughput up to 510kHz @ 9K

The Dhyana 9KTDI is equipped with the latest CXP-12 high-speed interface. The 9K@510kHz line frequency means a data throughput of 4590Mpixel per second, which is almost 6 times faster than current mainstream 8K line scan cameras, and more than 50 times faster than back-illuminated TDI-CCD cameras.

Specification >

Model: Dhyana 9KTDI
Sensor Type: BSI sCMOS TDI
Sensor Model: Gpixel GLT5009BSI
Color/Mono: Mono
Array Diagonal : 45.4mm
Resolution: 9072
Pixel Size: 5μm x 5μm
Effective area: 45.36mm x 1.28mm
QE: 82%@550nm；50%@350nm；38%@800nm
Max. Line Rate: 300kHZ@12bit；345kHZ@10bit；510kHZ@8bit
Operation Mode: TDI/Area
TDI Stage: 4/8/16/32/64/128/192/256
Scan Direction: Forward/Reverse/Trigger Control
CTE: ≥0.99993
Data Bit Depth: 12bit、10bit、 8bit
Full-Well capacity: 15.5ke-@12bit；14ke-@10bit
Dynamic Range: 68.7dB@12bit；63.6dB@10bit
Readout noise: 7.2e-@12bit；11.4e-@10bit
DSNU: 1.5e-@12bit；3.5e-@10bit
PRNU: 0.3%
Binning: 2x1; 4x1; 8x1
Data Interface: CoaXPress 2.0
Cooling Method: Air & Liquid cooling
Cooling temperature: 40℃ below ambient
Dark Current: 950e-/p/s@Chip temperature 10℃
ROI: Support
Trigger Mode: Trigger Input, Scan Direction Input
Output Trigger Signals: Strobe out
Trigger Interface: HR10A-7R-4S
Timestamp Accuracy: 8 ns
Gain: Analog Gain: x2 ~ x8; Digital Gain: x0.5 ~ x10
Optical Interface: M72/User customization
Power Supply: 12V/8A
Power Consumption: <60W
Dimensions: 86mm x 86mm x 109mm
Weight: 1100g
Software: Samplepro/Matlab
SDK: GenICamTM
Operating System: Windows/Linux
Certification: CE/RoHS
Operating Environment: Working Environment: Temperature 0~40°C/Humidity 0~85%
Storage Environment: Temperature 0~60°C/Humidity 0~90%
