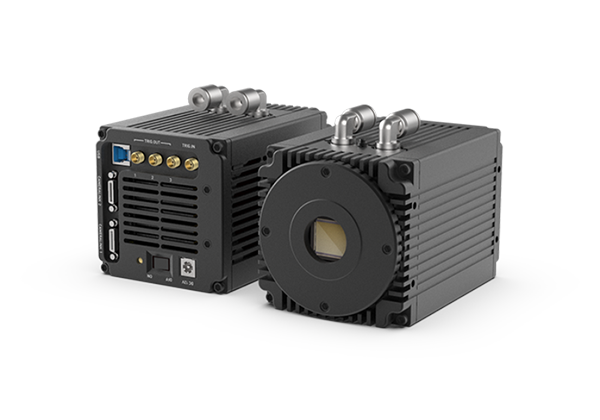

Dhyana 400BSI V3
6.5 μm BSI sCMOS Spectroscopy camera
- 95%@600nm Peak QE
- 6.5 μm x 6.5 μm Pixel Size
- 2048 x 2048 Resolution
- 100 fps @ 4.2 MP
- CameraLink & USB3.0
Overview
Dhyana 400BSI V3 is a very excellent spectroscopy camera with response range from 200 to 1100 nanometers. Not only very good signal at low lighting and increased sensitivity at UV, visible, and near-infrared wavelengths, but also higher bandwidth and faster conversion speed.
-

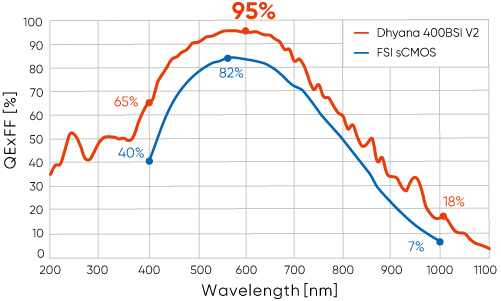

Sensitivity High QE/Low Noise
Rise above dim signals and noisy images. Near-perfect Quantum Efficiency means capturing almost every photon that comes your way. Combined with low noise electronics, capture images with high signal-to-noise ratio even when signals are weak.
-

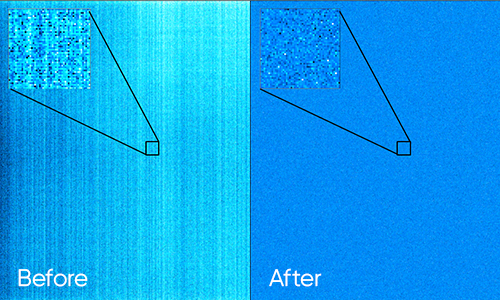

Background Quality
Exclusive Tucsen Calibration Technology reduces patterns visible in the bias or when imaging very low signal levels. This fine calibration is evidenced by our published DSNU (Dark Signal Non-Uniformity) and PRNU (Photon Response Non Uniformity) values. See it for yourself in our clean bias background images.
-

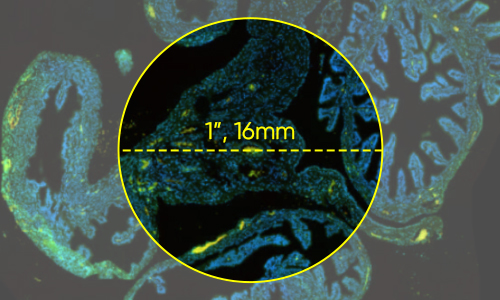

Optical Matched Pixel Size
Get the most from your optical setup. 6.5μm pixels perfectly match the ideal pixel size for High-NA 100x, 60x and 40x microscope objectives, offering optimal spatial sampling and sensitivity. This size also offers well-balanced imaging for lens-based optical setups.
Specification >
- Model: Dhyana 400BSI V3
- Sensor Type: BSI sCMOS
- Sensor Model: Gpixel GSENSE2020BSI
- Color/Mono: Mono
- Array Diagonal : 18.8 mm
- Resolution: 2048 (H) x 2048 (V)
- Pixel size: 6.5 μm x 6.5 μm
- Effective Area: 13.3 mm x 13.3 mm
- Peak QE: 95%@600nm
- Frame Rate: 100fps@CameraLink; 40fps@USB3.0
- Full-Well capacity: 45ke-
- Dynamic Range: 90dB
- Readout Noise: CMS: 1.1e-(Median)/1.2e-(RMS)
- Shutter Type: Rolling/Global Reset
- Exposure Time: 6.6μs-10s
- DSNU: 0.2e-
- PRNU: 0.3%
- Cooling Method: Air & Liquid
- Cooling Temperature: 45℃ below ambient
- Dark Current: Air: 0.15e-/pixel/s@-15℃, Liquid: 0.2e-/pixel/s@-25℃
- Optical Interface: C-mount
- Data Interface: USB3.0 & Cameralink
- Binning: 2x2，4x4
- ROI: Support
- Trigger Mode: Hardware & Software
- Output Trigger Signals: Exposure, Global, Readout, High level, Low level
- Trigger Interface: SMA
- Data Bit Depth: 11 bit, 12 bit, 16 bit
- Power Supply: 12V/8A
- Power Consumption: 45 W
- Dimensions : 85 mm x 85 mm x 127 mm
- Weight: 995 g
- Software: Mosaic, Samplepro, LabView, Matlab, Micromanager
- SDK: C, C++, C#
- Operating System: Windows / Linux
- Operating Environment: Temperature 0~40°C / Humidity 10~85%
Applications >
Download >
-
Dhyana 400BSI V3 Brochure
-
Dhyana 400BSI V3 Dimension
-
Camera External Trigger Instructions
-
Software-Mosaic V1.6.10
-
Plugin-Labview ( with user guide )
-
Plugin-Matlab ( with user guide )
-
Plugin-Micromanager ( with user guide )
-
Driver-TUCam Camera Driver
