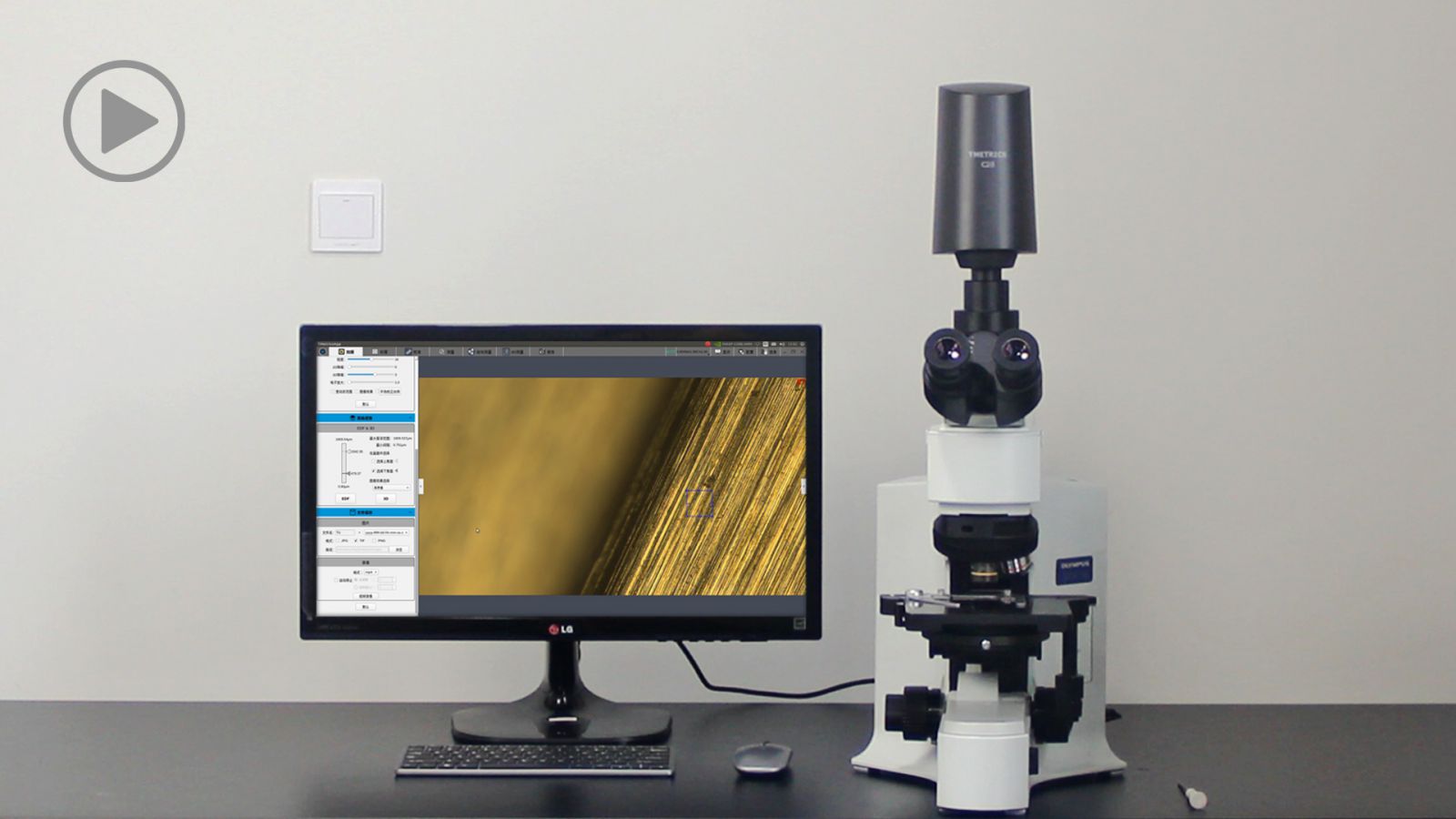

No computer required, perform 3D observation and measurement.
Directly equip with metallographic, stereo and other reflective microscopes.
±2um measuring accuracy for 2D&3D with 10x objective lens.

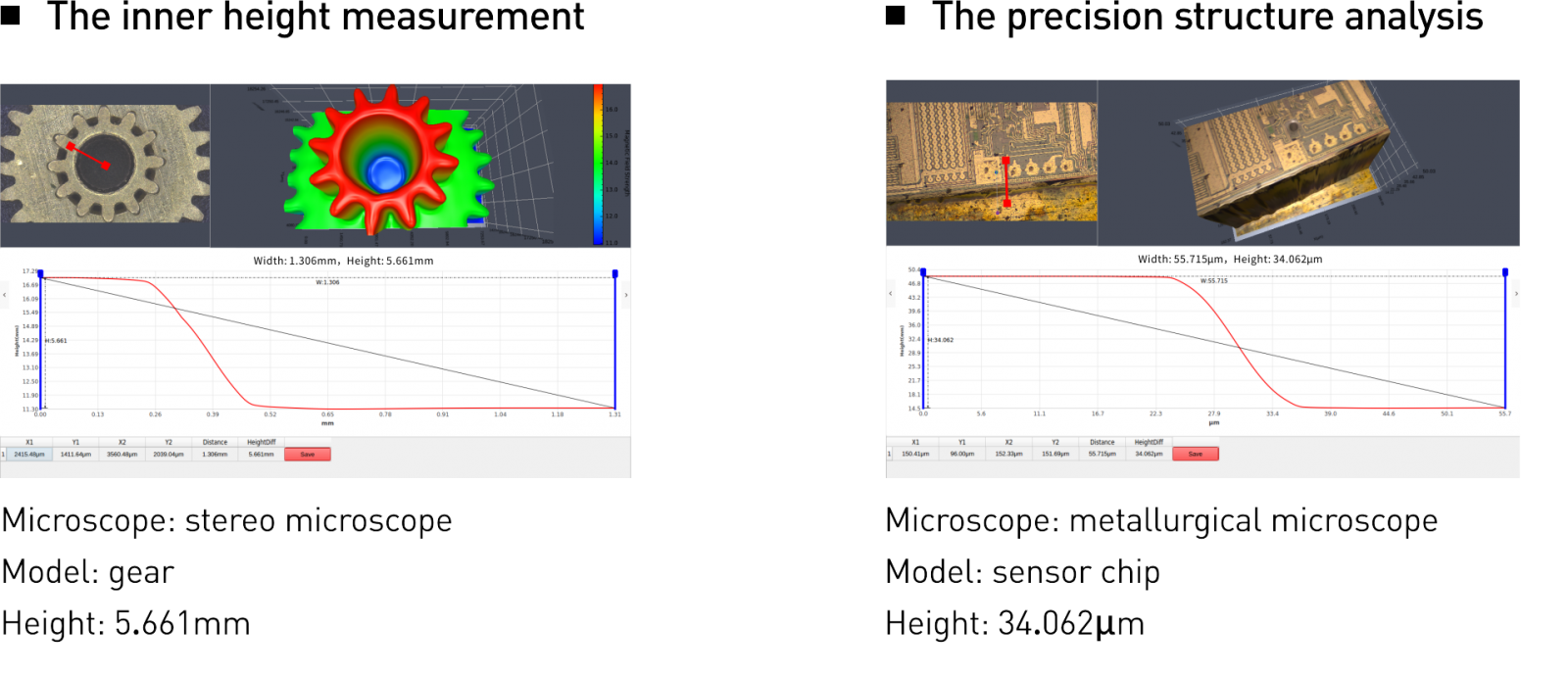

Create 3D matrix and easily measure any location
Only one-click to create 3D matrix, then you can observe the real scene or pseudo-color model with 360° rotation, measure any position and record data in real time. With the metallographic microscope of 10 times objective lens, , the Z-axis measurement accuracy and repeatability is±2 micron and±1 micron. The higher magnification objective lens, and the higher precision data.

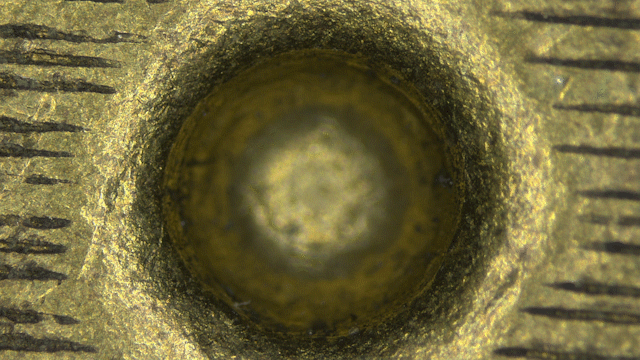

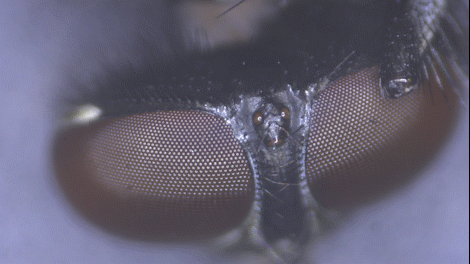

Real-time EDF for clear microscopic observation
Ordinary microscopes cannot focus on multiple layers at the same time under high magnification. It is easy to cause angle deviation, rotation and uneven focal plane by using thirdparty software and hardware systems to expand the depth of field. The C20 inner smart EDF algorithm can help solve these problems, obtain all the features of the sample at high magnifications and capture a clear and correct full-frame focusing image.

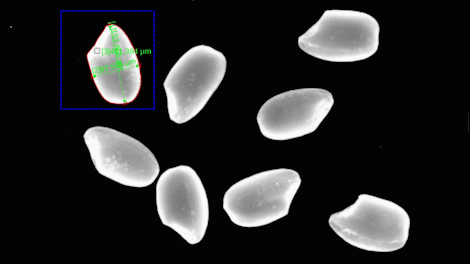

2D automatic measurement function
No need for the manually precise positioning, the C20 enables you to finish your batches measuring project as quickly as possible. With the stereo microscope of 2.5 times magnifying, the 2D automatic measurement accuracy and repeatability is ±5 micron and ±3 micron.
Report creation function
The C20 can not only save images and video data, but also automatically create test reports with pictures and texts, all 2D and 3D data in the work-flow all can be exported. The job was done when operation finished, easy and simple!
